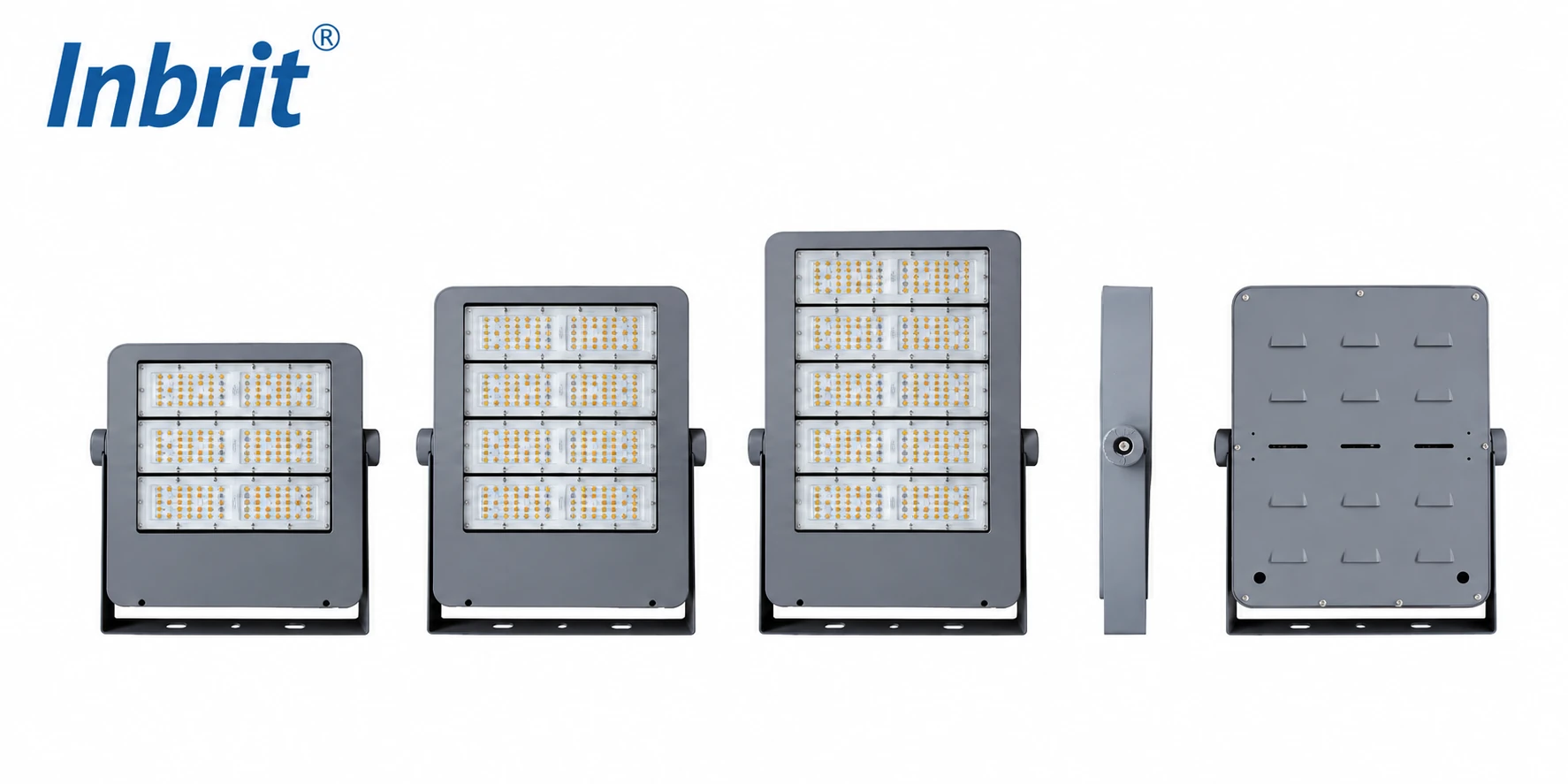

SHADOW is a modular high mast LED light available in 120W, 180W, 240W and 300W configurations. Its die-cast aluminum housing provides efficient heat dissipation, while the adjustable metal bracket supports flexible installation for high mast, area and flood lighting applications.
Why Choose SHADOW High Mast LED Lights?
1. Modular Power Design
Available in 2-, 3-, 4- and 5-module configurations, covering rated powers from 120W to 300W.
2. Efficient Heat Dissipation
The tight die-cast aluminum housing helps dissipate heat efficiently and supports long-term LED operation.
3. Bat-Wing Light Distribution
A 150° × 75° bat-wing distribution is designed for broad-area illumination.
4. Flexible Mounting
The metal adjustable bracket supports installation on poles, walls and other suitable mounting structures.
5. Outdoor Protection
IP66 and IK08 protection provide resistance to outdoor weather exposure and mechanical impact.
6. Multiple Color Temperatures
Available in 3000K, 4000K, 5000K and 6000K to suit different outdoor lighting requirements.
SHADOW Applications
High Mast Lighting
Squares & Plazas
Sports Areas
Industrial Areas
Large Outdoor Spaces
Billboard & Area Lighting
| Specification | SHADOW-001 | SHADOW-002 | SHADOW-003 | SHADOW-004 |
| Rated Power | 120W / 2 Modules | 180W / 3 Modules | 240W / 4 Modules | 300W / 5 Modules |
| System Voltage | AC100–277V | |||
| Light Source | 3030 | |||
| Light Efficiency | ≥120 lm/W | |||
| Light Distribution | Bat-Wing 150° × 75° | |||
| Color Temperature | 3000K / 4000K / 5000K / 6000K | |||
| CRI | ≥Ra70 | |||
| IP Rating | IP66 | |||
| IK Rating | IK08 | |||
| Working Temperature | -10°C to +60°C | |||
| Lamp Weight | 4.7 kg | 5.2 kg | 6 kg | 7 kg |
| LED Lifespan | >50,000 h | |||
| Lamp Dimension | 300×380×63 mm | 380×380×63 mm | 460×380×63 mm | 550×380×63 mm |
| Package Dimension | 320×395×150 mm | 400×395×150 mm | 480×395×150 mm | 560×395×150 mm |
| Packing | 2 pcs/CTN | |||
| Suggested Mount Height | 7–10m / 10–12m depending on model | |||
| Warranty | 3 Years | |||
SHADOW high mast LED lights are designed to deliver controlled light distribution across large outdoor areas. The photometric diagrams below illustrate the luminous intensity distribution and planar illuminance profile of a tested configuration, providing a useful reference for lighting layout, beam coverage and project evaluation.
Combined with SHADOW’s modular LED design and adjustable mounting bracket, the optical distribution allows the luminaire to be positioned according to different mounting heights and area-lighting requirements, including plazas, industrial areas, sports facilities and other large outdoor spaces.
Photometric distribution reference for SHADOW LED lighting, showing luminous intensity and planar illuminance performance under a tested configuration. Contact Inbrit for model-specific IES files and lighting simulation data.
