“How much area can one high mast light cover?” sounds like a simple specification question, but there is no reliable universal answer in square meters. A high mast is not a floodlight with one fixed coverage radius. Useful coverage depends on mounting height, number of luminaires, lumen output, optical distribution, aiming angle, mast position, neighboring masts, target illuminance, required uniformity, and the geometry of the site.
A configuration that adequately illuminates a logistics yard may not satisfy the requirements of a sports facility, interchange, container terminal, or industrial area even when the physical area is identical.
For project buyers, coverage should therefore be determined through photometric calculation. Software such as DIALux allows designers to place the actual luminaires within the site model and evaluate how mounting height, optics, orientation, and spacing affect the illuminated area.
Two LED high mast luminaires can both be rated at 400W while producing different useful coverage.
One may have higher luminaire efficacy, another may use narrower optics, and another may distribute more light at wide angles. Even identical fixtures can produce different ground results when mounted at different heights or aimed differently.
For this reason, the coverage of a high mast lighting system should not be described only by LED wattage.
The correct engineering inputs include total lumen output, photometric distribution, mounting height, luminaire quantity, aiming angles, mast spacing, and the lighting requirement at the calculation surface.
Wattage tells the buyer about electrical power consumption. It does not independently determine how many square meters can meet a required lux and uniformity target.
Coverage can mean several different things.
One supplier may describe every visible illuminated surface as covered. A project consultant may define coverage as the area meeting a specified average illuminance. Another project may require that every calculation point remain above a defined minimum value while also meeting a uniformity criterion.
These are very different definitions.
Before asking how much area a mast covers, the project should therefore define the lighting target. Relevant criteria may include maintained average illuminance, minimum illuminance, uniformity, glare limits, vertical illuminance, or other requirements appropriate to the application.
The calculation should then identify the area meeting those targets, not simply the point where some visible light reaches the ground.
Increasing mast height can allow light from each luminaire to reach a broader area and can help create smoother overlap between multiple beams.
However, increasing height also increases the distance between the luminaire and the target surface. Light must therefore be distributed carefully to maintain the required illumination.
This creates an engineering tradeoff. A lower mast can produce high illumination within a smaller area, while a higher mast may create broader distribution but require more lumen output or different optics to maintain the same target level.
Height selection should therefore be coordinated with luminaire quantity and photometric distribution rather than increased simply to maximize nominal coverage.
Structural and maintenance considerations also change as mast height increases.
Total lumens tell only part of the story. Optics determine how those lumens leave the luminaire.
A narrow beam can create higher intensity across a smaller target zone or reach a more distant area when correctly aimed. A broader distribution can spread light across a larger nearby zone but may provide lower intensity at each point.
High mast systems often combine several luminaires with different aiming directions so their photometric patterns overlap across the project.
For an irregular logistics yard, one group of fixtures may serve central operating areas while another is aimed toward perimeter sections. An interchange or parking facility can require a completely different arrangement.
This is why a product catalog showing one beam angle does not provide enough information to calculate complete high mast coverage.

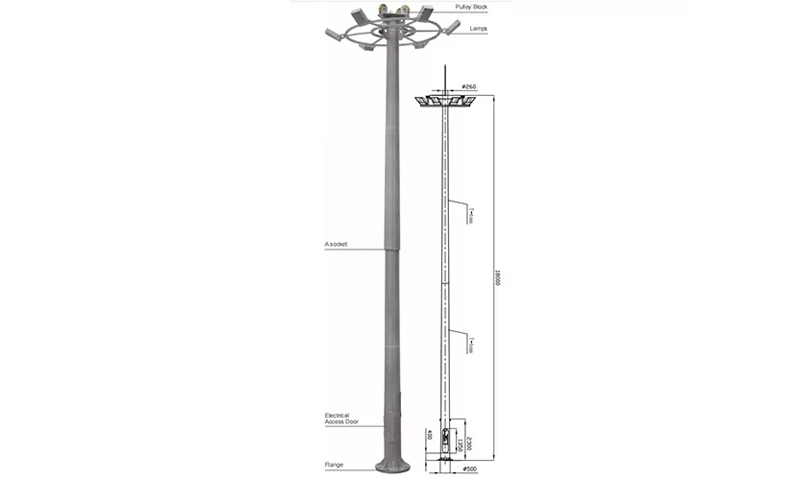

A high mast lighting system can carry multiple LED luminaires around its headframe.
Increasing the number of luminaires increases the available total light output and can also allow the designer to distribute beams toward more directions.
However, adding fixtures is not automatically the most efficient solution. If several luminaires overlap excessively near the mast, the design may create a very bright center while still leaving weak illumination around the outer edges.
Before adding more fixtures, engineers should examine whether changing optics, aiming, mounting height, or mast position produces a better result.
The design goal is useful distribution rather than maximum installed watts per mast.
High mast luminaires are often aimed rather than installed in one fixed downward direction.
Tilting a fixture outward can extend its beam farther from the mast, but increasing the angle can also affect glare, light spill, and the intensity reaching distant surfaces.
If the fixture is aimed too close to the mast, outer sections may remain dark. If it is aimed too far outward, the design may create excessive high-angle light or insufficient illumination in the intermediate zone.
The correct aiming angle should therefore be determined through photometric calculation.
Installation drawings should record the approved orientation so contractors can reproduce the simulated design during commissioning.
Large outdoor sites often use several high mast structures whose lighting distributions overlap.
The useful coverage of one mast therefore depends partly on the location of neighboring masts.
An area near the edge of one mast's distribution may receive additional illumination from another mast, improving both minimum values and uniformity.
This means mast spacing is a system-level variable. Increasing spacing can reduce the number of structures and foundations, but excessive spacing can create darker areas between masts.
Reducing spacing may improve overlap but increase civil, electrical, and equipment cost.
The optimal layout balances required lighting performance against mast quantity and infrastructure cost.
A theoretical circular coverage radius is rarely a good representation of a real project.
Ports contain container stacks and cranes. Industrial sites contain buildings and equipment. Parking areas contain islands and boundaries. Interchanges contain curved roads and ramps.
These objects and geometries affect where useful light is needed and where it may be blocked.
A high mast positioned centrally within a completely open rectangular area behaves differently from the same mast installed beside tall equipment or near a site boundary.
The design should therefore use an actual site plan whenever possible rather than calculating coverage from a simple circle around the mast.
DIALux evo is designed for lighting calculation and visualization across indoor and outdoor areas. According to the official DIALux information, designers can use real luminaires, position them precisely, adjust mounting height and beam angles, and evaluate outdoor lighting performance, including glare and light pollution.
For a high mast project, this allows the designer to import or reproduce the site geometry and then place mast locations according to the proposed civil plan.
The actual photometric file for the LED high mast light should be used rather than a generic fixture.
The software can then calculate the lighting result across defined surfaces, allowing the engineer to identify dark areas, excessive brightness, poor uniformity, or unwanted spill before construction begins.
The quality of a lighting calculation depends on the quality of its inputs.
For a port or logistics yard, the model should include site dimensions, traffic routes, storage zones, buildings, boundaries, relevant obstructions, and target calculation areas.
Mast coordinates should be positioned according to the realistic structural locations available on site.
If the project owner has a CAD or suitable site plan, it can provide a more reliable starting point than estimating dimensions from photographs.
Different zones can also have different lighting requirements. A loading area may need a different target from a low-traffic perimeter zone, so the calculation should not necessarily treat the entire project as one uniform surface.
Photometric simulation is only meaningful when the fixture data matches the proposed product.
An IES, LDT, or another supported photometric file describes the distribution of light from the luminaire. Different optics from the same product family can produce substantially different calculations.
The design file should therefore correspond to the exact luminaire and optical configuration intended for production.
If suppliers provide several optic choices, designers can compare them within the same site model to determine which distribution produces the best combination of coverage and uniformity.
The final technical approval should identify the optic code so manufacturing does not substitute another distribution after the lighting calculation has been accepted.
Average illuminance alone can hide weak areas.
Imagine a project with very high illumination near each mast and significantly darker zones around the perimeter. The numerical average may still appear acceptable because the bright areas raise the total result.
Minimum illuminance and uniformity help reveal whether the distribution is balanced across the target area.
This is especially important for container yards, parking areas, and industrial sites where workers or vehicles move throughout the illuminated zone.
A design should therefore be optimized around the applicable project criteria rather than maximizing average lux.
Extending the reach of a high mast luminaire normally requires more light to be sent toward distant areas.
If this is achieved mainly through excessive outward aiming or high-angle intensity, the result may increase glare or send significant light outside the project boundary.
Greater geometric reach is therefore not automatically better coverage.
DIALux modelling can help designers evaluate where the light goes beyond the primary calculation area and adjust optics, aiming, or mast positions accordingly.
Sites near roads, residences, airports, waterways, or neighboring properties may require particularly careful control of unwanted light.
For procurement, create alternatives using the same site geometry and performance target.
One layout might use fewer taller masts with more luminaires per structure. Another might use additional masts with fewer fixtures or lower mounting heights.
Compare average and minimum illuminance, uniformity, connected electrical load, luminaire quantity, mast quantity, foundation quantity, glare, spill light, and total BOQ implications.
This allows the project team to evaluate whether a larger theoretical coverage area actually creates a more economical complete system.
The layout with the fewest masts is not automatically the best, and the layout with the highest lux is not automatically the best. The objective is to meet the required performance efficiently and consistently.
How many square meters can one high mast light cover?
There is no universal area. Coverage depends on mast height, luminaire quantity, lumen output, optics, aiming, site geometry, required lux, uniformity, and contribution from neighboring masts.
Does a taller high mast cover more area?
A greater height can increase potential geometric reach and improve distribution overlap, but useful coverage also depends on lumen output and optics. Height alone cannot determine the illuminated area.
How many LED luminaires should be installed on one high mast?
The quantity should be determined from the required lighting performance, luminaire output, optics, mast height, aiming directions, and target area rather than using one fixed number for every project.
Can DIALux calculate high mast lighting?
DIALux evo can model outdoor areas using real luminaire photometric data, mounting positions, heights, and beam orientations, allowing designers to evaluate illuminance and other lighting results for the proposed layout.
What information is needed for a DIALux high mast calculation?
Useful inputs include a site plan, dimensions, mast locations, mounting heights, luminaire photometric files, aiming directions, calculation zones, and required lighting criteria.
Why does the same high mast fixture cover different areas in different projects?
Mounting height, aiming, optics, mast spacing, obstructions, surrounding masts, site geometry, and required lux can all change the useful coverage produced by the same luminaire.
The area covered by a high mast light cannot be reduced to one universal square-meter figure. Useful coverage is the result of mounting height, optics, luminaire quantity, aiming angles, mast spacing, site geometry, required illuminance, and uniformity working together.
For large outdoor projects, DIALux provides a much stronger method than estimating coverage from wattage or a nominal beam angle. By modelling the actual site and using the exact luminaire photometric file, engineers can see where illumination is adequate, where dark areas remain, and whether changing the mast layout or optics can improve the result.
For EPC contractors and project owners, the best question is therefore not “How far does this high mast light shine?” It is “What combination of mast height, luminaires, optics, aiming, and spacing meets the required lighting performance across this specific site with the most efficient complete system?”
