Modular combination, avant-garde, sustainability, and future performance: This is the innovative concept of lighting fixtures. In fact,the team of designers and R&D personnel collaborated to create a high-performance product that perfectly combines practical technology with optical art, and perfectly showcases optical art.
The luminaires are energy-efficient and equipped with aluminium optics to ensure high visual comfort without glare.

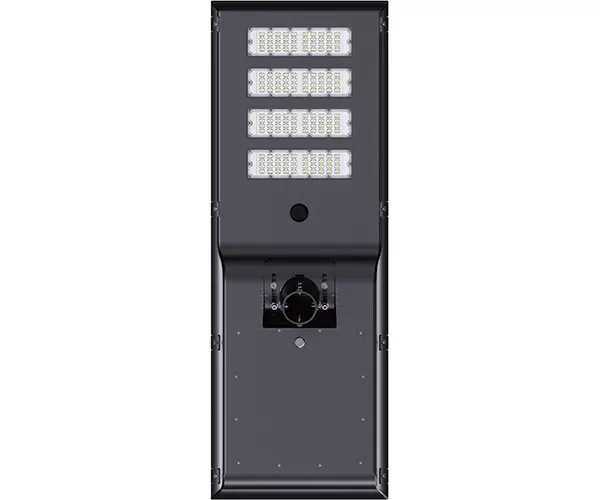

The OWL lighting fixtures are derived from aesthetics andclassical outdoor design.This traditional design now adoptsthe most advanced LED lighting technology.

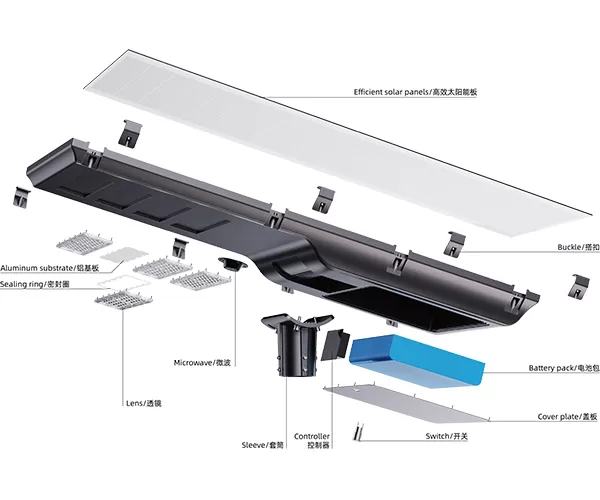

OWL lighting fixtures are designed for easy installation andintegration with modular lighting.
The lamp body adopts die-casting aluminum technology,which is corrosion-resistant.
Adopting efficient SMD5050 lamp beads and high-quality
constant current drive, reliable performance and long lifespan.
Exquisite structural waterproof design, with a protection levelof up to lP66.
Modular combination, avant-garde, sustainability, andfuture performance: This is the innovative concept oflighting fixtures.
ln fact, the team of designers and R&D personnel
collaborated to create a high-performance product thatperfectly combines practical technology with optical art,and perfectly showcases optical art.
The integrated solar street lamp series light source adopts modular design, corrosion-resistant aluminum alloy shell andhigh-efficiency monocrystalline solar panels. The integrated street lamp adopts IP66 and KD9 shells, which increase itsstrength. lt is carefully designed, durable, and can be controlled in rain, snow, or storms.

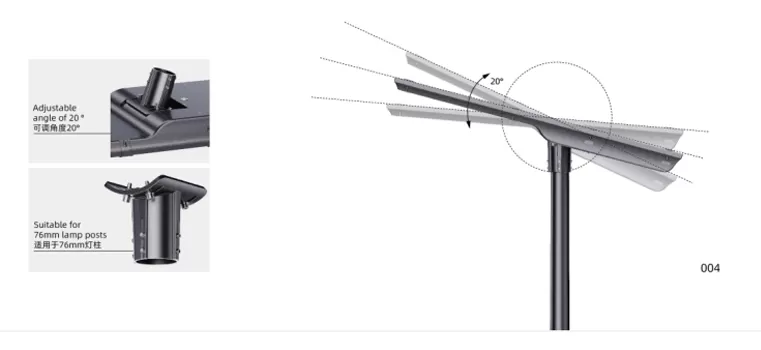

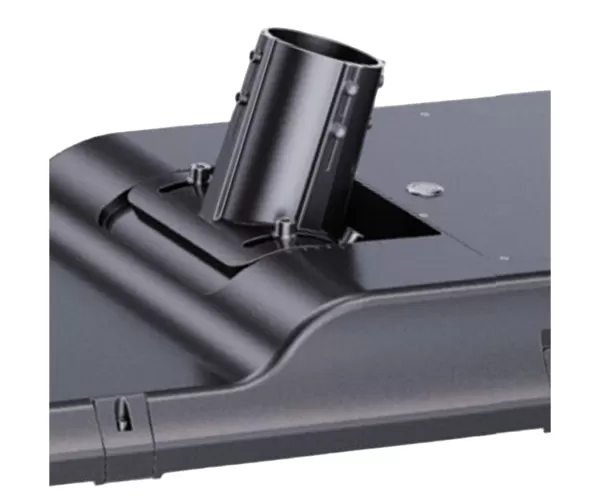

Adopting an innovative angle adjustable design, it has excellent installation convenience.This design can accurately and flexibly adjust the angle according to different environmental conditions, easily handle places with special requirements for light projection direction, perfectly adapt to various installation environments, and demonstrate its high versatility and adaptability,
| Product Number | OWL-A | OWL-B | OWL-C | OWL-D |
| Powe | 30W-40W | 40W-60W | 60W-80W | 80W-100W |
| Solar panel power | 80W | 100W | 120W | 140W |
| Battery capacity | 12.8V/24AH | 12.8V/36AH | 12.8V/42AH | 12.8V/60AH |
| Control system | MPPT IOT, AC/DC Hybrid solution, PwM optional | MPPT IOT, AC/DC Hybrid solution, PwM optional | MPPT IOT, AC/DC Hybrid solution, PwM optional | MPPT IOT, AC/DC Hybrid solution, PwM optional |
| Average lumens | 160LM/W | 160LM/W | 160LM/W | 160LM/W |
| Chip brand | LUMILEDS/CREE | LUMILEDS/CREE | LUMILEDS/CREE | LUMILEDS/CREE |
| Charging working environment | 0℃~+45℃℃;10%~90%RH | 0℃~+45℃℃;10%~90%RH | 0℃~+45℃℃;10%~90%RH | 0℃~+45℃℃;10%~90%RH |
| Discharge working environment | -20℃~+45℃;10%~90%RH | -20℃~+45℃;10%~90%RH | -20℃~+45℃;10%~90%RH | -20℃~+45C;10%~90%RH |
| Working time | 3-5 Rainy days,11.5 hours per night | 3-5 Rainy days,11.5 hours per night | 3-5 Rainy days,11.5 hours per night | 3-5 Rainy days,11.5 hours per night |
| Battery lifespan | >2000 times cycle | >2000 times cycle | >2000 times cycle | >2000 times cycle |
| CCT | 3000-6500k | 3000-6500k | 3000-6500k | 3000-6500k |
| CRI | >70 | >70 | >70 | >70 |
| Optical lens | PC lens for Type-I/I/Ⅲ/IV/V | PC lens for Type-1/IⅡ/Ⅲ/IV/V | PC lens for Type-I /IⅡ/Ⅲ/IV/V | PC lens for Type-I /Ⅱ/Ⅲ/IV/V |
| Working Temperature | -350C to+50°C | -350C to+50°C | -35C to+50°C | -350C to+50℃ |
| Lifetime | >50000H | >50000H | >50000H | >50000H |
| IP class | IP66 | IP66 | IP66 | IP66 |
| IK class | IK09 | IK09 | IK09 | IK09 |
| Body Material | ADC12 | ADC12 | ADC12 | ADC12 |
Diversified application fields lead the industry innovation

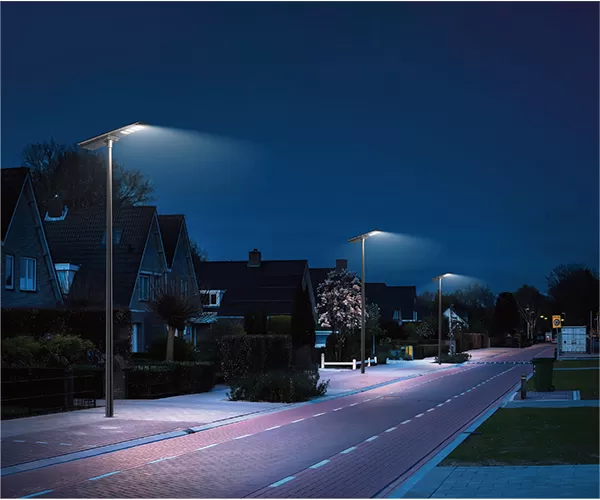

Our application fields are very wide, mainly covering urban lighting, road lighting, garden lighting, remote area lighting and wilderness camping lighting and other aspects. The company uses the advantages of solar energy cleanliness, safety and universality to provide energy saving, environmental protection, economic and practical solar outdoor lighting solutions.
At the same time, the company is also committed to technological innovation, constantly improving product performance and user experience, and gradually expanding solar lighting to indoor lighting, agricultural lighting, industrial lighting and other emerging fields.
By providing a full range of services, it has promoted the rapid development of the solar lighting industry.

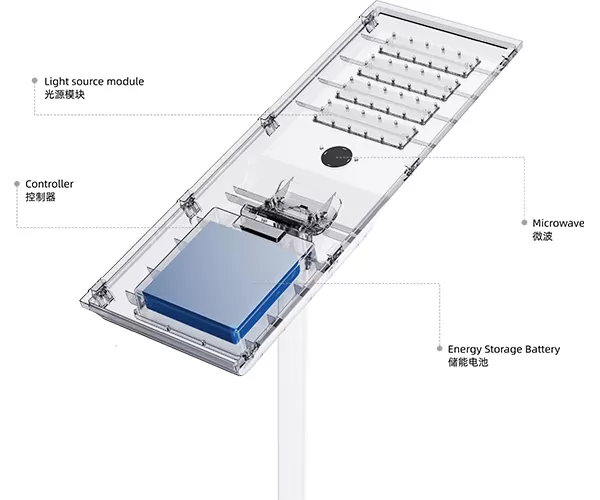

In the solar lighting system, the solar panel charges the battery in the daytime, and the battery powers the lights at night.
No need to connect to the grid, and zero cost to use;
No need to lay cables, easy to install, saving cost and time;
Each solar street light is independent, which can be installed in any sunny place,automatic ON/OFF, maintenance-free;
Solar street light is DC supply, and the working voltage is less than 36V, which is safer;
The initial cost of solar street lights are 30%-50% higher than the AC street lights.
The battery lifetime not only depends on the quantity, but also affected by the DOD(depth of discharge). META SOLAR uses branded battery cell and manage the DOD strictly ensuring the battery life. Generally, Our LFP battery sustain 7 years more, and 5 years more with ternary lithium battery and gel battery.
Solar panel should not be covered with heavy dust, sand or bird droppings, which will lower its generation efficiency, so it needs to be cleaned regularly. Generally, it need to be cleaned every 8-10 months in rainy area , every 3-5 months in dry and dusty area.
On the heavy traffic road and time,we don’t suggest motion sensor,on low traffic road and time,such as country road,Urban pathway,park, parking lot,etc,you can add the motion sensor to save cost.
The most popular battery is LFP(lithium iron phosphate battery), which accounts for more than 70 percent of the current solar street lighting market,Due to it’s small size,high temperature resistance, deep discharge,long lifespan,safe,environmental protection.
Our all in one and all in two systems have a remote control, you can adjust the working time and brightness of the light.
For LED lighting, brightness is measured in lumens. The higher the lumens, the brighter the light. Wattage, however, merely reflects power consumption and is not directly proportional to brightness. Meta SOLAR utilizes super bright LED chips that achieve a luminous efficiency of up to 200 lm/W, compared to the typical 130-140 lm/W of standard solar lights.
Yes, we offer custom service for outdoor solar street lights. According to your specific needs and scenarios, we can tailor the specifications, brightness and intelligent control of solar street lights.
The delivery time for customized products depends on the specific customization content and production schedule. Generally, after receiving the customization request, we will assess it as soon as possible and provide an estimated delivery time.
We offer comprehensive technical support, including product selection consultation, installation guidance, troubleshooting, and resolution. Customers can contact us via phone, email, or online chat tools to obtain timely technical support.
You can order online through our official website, or you can contact our sales team directly for product information and help. For large purchases or customized needs, it is recommended to communicate in detail by email or phone, so that we can provide you with more accurate quotes and services.
Generally, standard products are shipped within 3-7 working days after order confirmation and payment. For customized or specially configured products, the shipping time may be slightly longer, subject to our production schedule and customer communication. We will notify you of the estimated shipping date in advance.
We support multiple payment methods, including but not limited to bank transfers, credit card payments (through third-party payment platforms), Alipay, WeChat Pay, etc. For specific payment methods and operation guides
Outdoor lighting street lamps are easy to install, excellent lighting effect, energy saving and environmental protection, saving a lot of electricity for the company.
The all-in-one solar street light is selected, which has good lighting effect and intelligent induction, which adds extra points for the safety of the community at night.
Split solar street light split design flexible layout, strong adaptability, beautiful and practical, recommended to friends in need.
