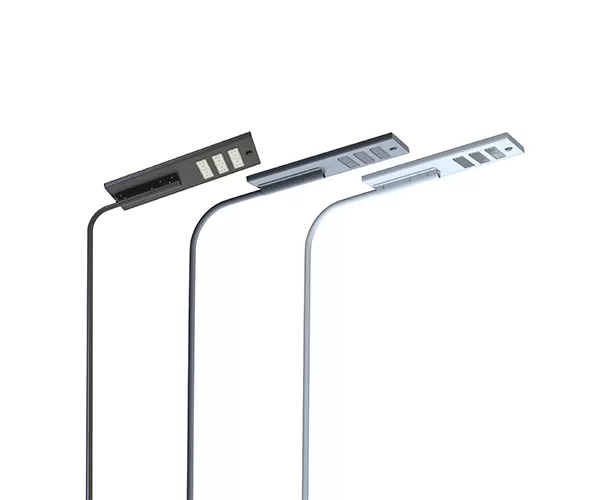

PLATE All-in-one Solar Street Light

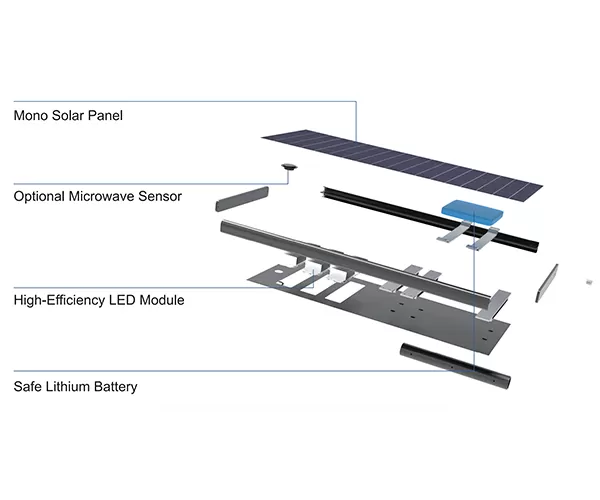

The Plate series integrates solar panels, lithium batteries, controllers, and light sources in one, which is convenient for transportation and easy to install.

Specification

ModelMT-PL
Working voltage12.8V
Battery typelithium iron phosphate(LFP)
Lighting power20W~50W
Color temperature3000K-6000K
IP ratingIP65
Light efficiency110-150LM/W
Suggested installation height4~10m

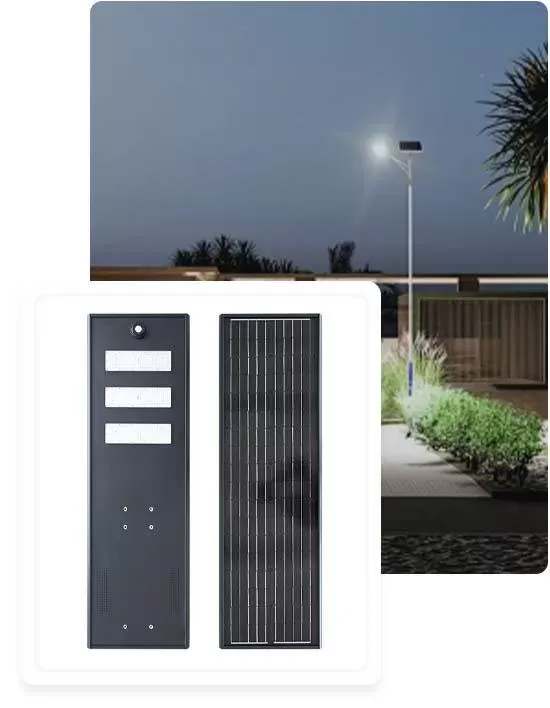

Product Design

Here Are Some Highlights Of The Product Design

The Plate series redefines outdoor lighting with its all-in-one design, combining solar panels, lithium batteries, controllers, and light sources for effortless transportation and installation.


While utilizing eco-friendly LFP batteries for extended lifespan, and featuring an innovative motion sensor that dynamically adjusts LED brightness to optimize energy efficiency and reduce costs, ensuring a seamless and sustainable lighting experience.

PIR motion sensor (Optional)
PIR motion sensor (Optional)

Motion sensor triggers high brightness at 32-39ft, dimming to 30% when object departs, optimizing energy efficiency

Lithium battery
Lithium battery

Original branded LiFePo4(LFP battery) with cycle life 2000 above, lifetime can reach 10 years more

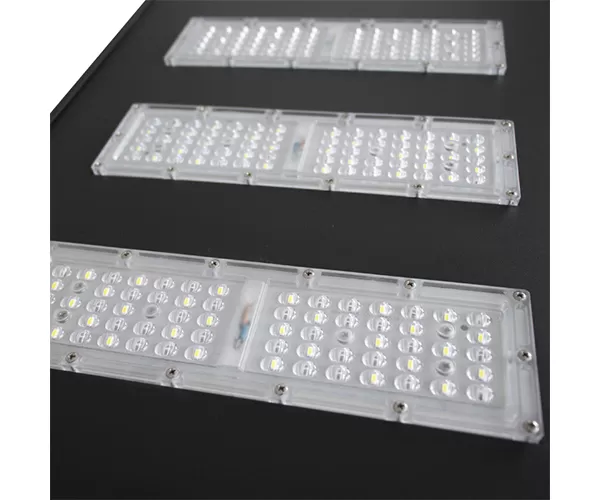

LED module
LED module

Using LED module, good heat dissipation, easy for maintenance

Controller
Controller

With high efficiency and low failure rate, IP65, constant current function, Overcharge and over discharge protection

Lamp holder
Lamp holder

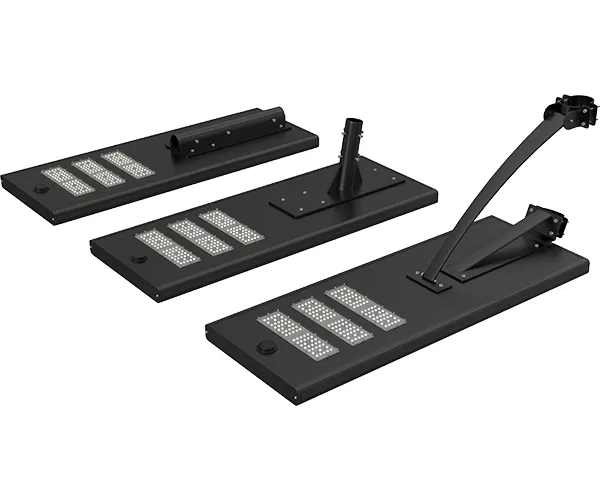

3 ways of mounting for options Top mounting Arm mounting Hoop mounting for different requirements

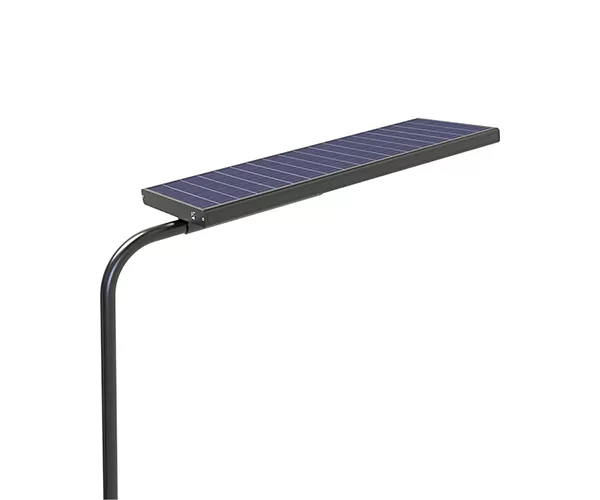

Mono/poly Crystalline solar panel
Mono/poly Crystalline solar panel

Conversation efficiency 20% above, lifespan more than 20 years

Product Design

Product Introduction

Product Introduction

Specifications

The Following Sections Describe Product Specifications

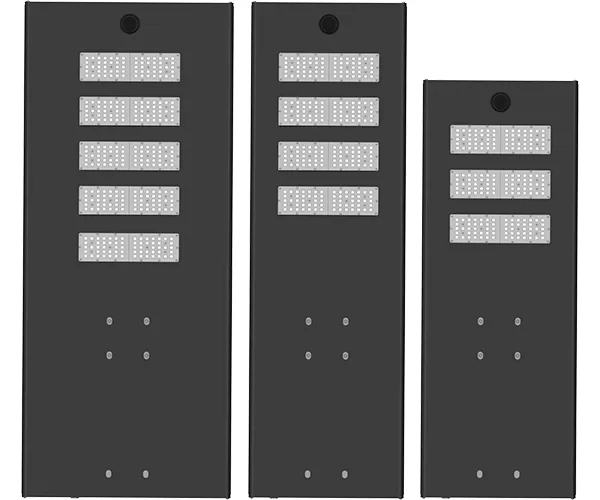

Model No.PLATE-001PLATE-002PLATE-003
Rated Power20W40W50W
System VoltageDC12.8VDC12.8VDC12.8V
LiFePO4 Battery24AH40AH50AH
Solar Panel18V80W18V100W18V145W
Light SourceCOB or LED Module
Light DistributionBat-Wing light distribution(150°×75°)
Light Efficiency110-150LMW
ColorTemperature3000K-6000K
CRI≥Ra70
IP RatingIP65
Working Temperature-10℃-+60℃
LED Lifespan50000H-100000H
Controller6A30W6A30W10A60W
Lamp Pipe DiameterΦ76MM
Lamp Dimension368×1210×68MM387×1352×68MM550×1480×68MM
Suggested
Mount Height
4-6M6-8M8M
Motion SensorYes
Lamp Weight12.3KG15.4KG19.2KG
Package Dimension
(Sleeve not included)
455*1295*125MM455*1575*125MM625*1560*125MM
Warranty3 Years

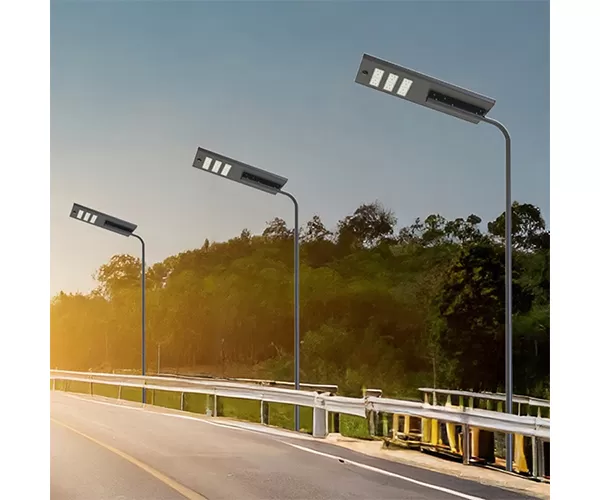

APPLICATION AREAS

The Following Application Areas Are Described

Diversified application fields lead the industry innovation


Our application fields are very wide, mainly covering urban lighting, road lighting, garden lighting, remote area lighting and wilderness camping lighting and other aspects. The company uses the advantages of solar energy cleanliness, safety and universality to provide energy saving, environmental protection, economic and practical solar outdoor lighting solutions.

At the same time, the company is also committed to technological innovation, constantly improving product performance and user experience, and gradually expanding solar lighting to indoor lighting, agricultural lighting, industrial lighting and other emerging fields.

By providing a full range of services, it has promoted the rapid development of the solar lighting industry.

More applications
Parks and
scenic spots
Parks and scenic spots
Rural
roads
Rural roads
Farms and
livestock farms
Farms and livestock farms
Urban streets and
sidewalks
Urban streets and sidewalks

SOME FAQ

Here Are Some Daily Questions And Answers
Solar street lamp FAQ
  • 01 What is the working principle of solar street light?

    In the solar lighting system, the solar panel charges the battery in the daytime, and the battery powers the lights at night.

  • 02 What are the similarities and differences with AC grid-connected street lights?

    No need to connect to the grid, and zero cost to use;

    No need to lay cables, easy to install, saving cost and time;

    Each solar street light is independent, which can be installed in any sunny place,automatic ON/OFF, maintenance-free;

    Solar street light is DC supply,  and the working voltage is less than 36V, which is safer;

    The initial cost of solar street lights are 30%-50% higher than the AC street lights.

  • 03 How often does the lithium battery need to be replaced?

    The battery lifetime not only depends on the quantity, but also affected by the DOD(depth of discharge). META SOLAR uses branded battery cell and manage the DOD strictly ensuring the battery life. Generally, Our LFP battery sustain 7 years more, and 5 years more with ternary lithium battery and gel battery.

  • 04 Does the solar panel need to maintenance?

    Solar panel should not be covered with heavy dust, sand or bird droppings, which will lower its generation efficiency, so it needs to be cleaned regularly. Generally, it need to be cleaned every 8-10 months in rainy area , every 3-5 months in dry and dusty area.

Solar street light system FAQ
  • 01 Do solar street lights need to be added with motion sensors?

    On the heavy traffic road and time,we don’t suggest motion sensor,on low traffic road and time,such as country road,Urban pathway,park, parking lot,etc,you can add the motion sensor to save cost.

  • 02 What type of batteries are commonly used in solar street lighting systems?

    The most popular battery is LFP(lithium iron phosphate battery), which accounts for more than 70 percent of the current solar street lighting market,Due to it’s small size,high temperature resistance, deep discharge,long lifespan,safe,environmental protection.

  • 03 Can the solar street light system use a remote control?

    Our all in one and all in two systems have a remote control,  you can adjust the working time and brightness of the light.

  • 04 Why is the Luminous efficiency of the lamp more important than the power?

    For LED lighting, brightness is measured in lumens. The higher the lumens, the brighter the light. Wattage, however, merely reflects power consumption and is not directly proportional to brightness. Meta SOLAR utilizes super bright LED chips that achieve a luminous efficiency of up to 200 lm/W, compared to the typical 130-140 lm/W of standard solar lights.

Custom service and technical support FAQ
  • 01 Do you offer product customization services?

    Yes, we offer custom service for outdoor solar street lights. According to your specific needs and scenarios, we can tailor the specifications, brightness and intelligent control of solar street lights.

  • 02 What is the delivery time for customized products?

    The delivery time for customized products depends on the specific customization content and production schedule. Generally, after receiving the customization request, we will assess it as soon as possible and provide an estimated delivery time.

  • 03 What technical support do you offer?

    We offer comprehensive technical support, including product selection consultation, installation guidance, troubleshooting, and resolution. Customers can contact us via phone, email, or online chat tools to obtain timely technical support.

Order FAQ
  • 01 How can I place an order for your products?

    You can order online through our official website, or you can contact our sales team directly for product information and help. For large purchases or customized needs, it is recommended to communicate in detail by email or phone, so that we can provide you with more accurate quotes and services.

  • 02 How long does it usually take to ship after order confirmation?

    Generally, standard products are shipped within 3-7 working days after order confirmation and payment. For customized or specially configured products, the shipping time may be slightly longer, subject to our production schedule and customer communication. We will notify you of the estimated shipping date in advance.

  • 03 What payment methods do you accept?

    We support multiple payment methods, including but not limited to bank transfers, credit card payments (through third-party payment platforms), Alipay, WeChat Pay, etc. For specific payment methods and operation guides
