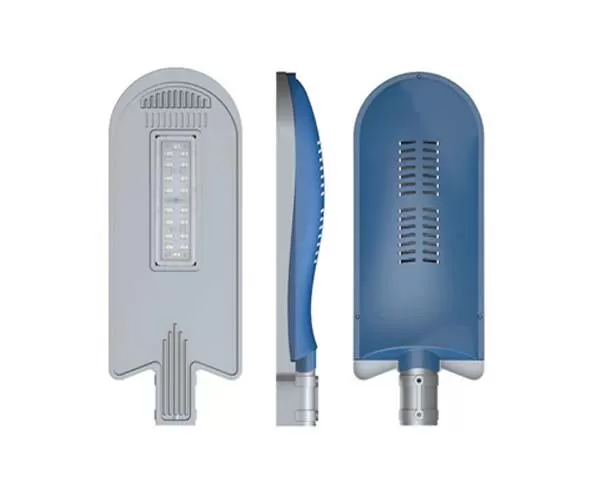

LUMO Split Solar Street Light

Split solar street light also known as all-in-three type, adopts Split Design concept, which can effectively save energy and extend the life of the whole lamp.

Specifications

ModelMT-XC
Working voltage12V
Battery typelithium iron phosphate(LFP)
Lighting power20-60W
Color temperature3000K/4000K/5700K/6500K
CRI≥Ra70
IP ratingIP66
Suggested installation height6-8M

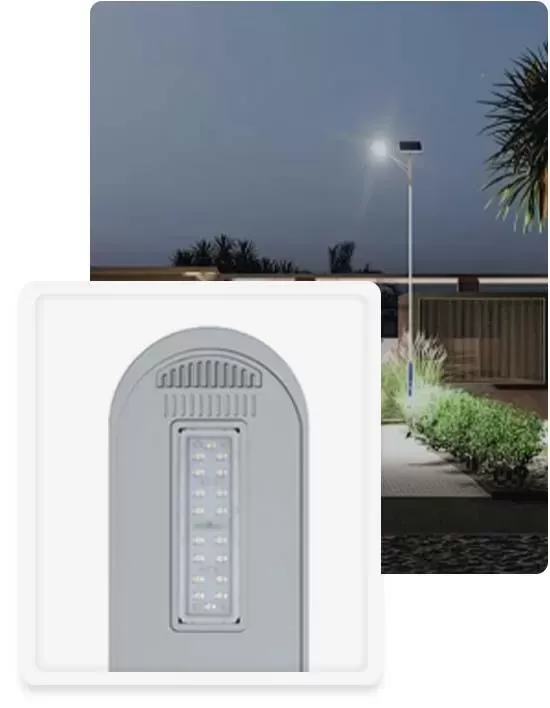

Product Design

Here Are Some Highlights Of The Product Design

Product features and component details


The LUMO series presents a innovative design available in a palette of vibrant colors, catering to diverse aesthetic preferences. Its modular integration design ensures seamless installation and maintenance, while its energy-efficient performance significantly extends the overall lifespan of the lamp. Furthermore, the high-grade lens and bat-wing light distribution system work in tandem to provide a more uniform illumination, casting a wider and more even glow.


This synergy of style, functionality, and eco-friendliness makes the LUMO series an attractive and reliable solar lighting solution for various environments.

LED light source using
LED light source using

Using LED module, good heat dissipation, easy for maintenance.

Lithium battery
Lithium battery

Original branded LiFePo4(LFP battery) with cycle life 2500 above, life time can reach 10 years more.

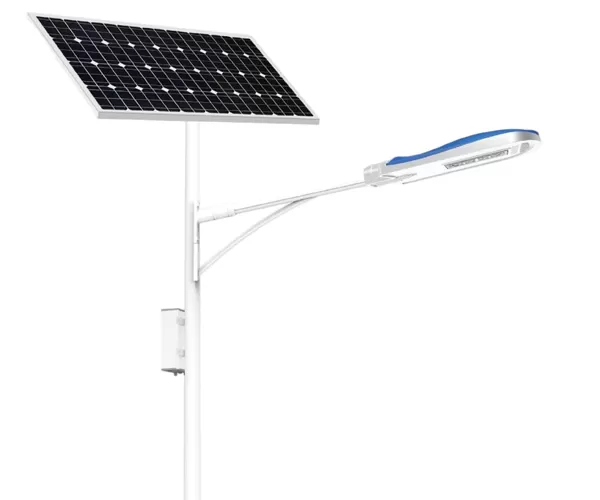

Mono/poly crystalline solar panel
Mono/poly crystalline solar panel

Conversation efficiency 20% above, lifespan more than 20 years.

Lamp pole
Lamp pole

Q235 steel plate, hot dip galvanizing and powder coated surface treating, wind resisting 36.9m/s.

Product Design

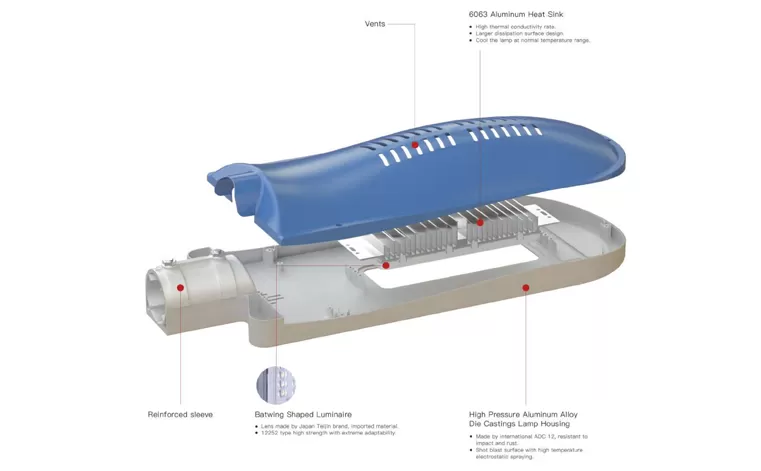

Product Introduction

Product Introduction

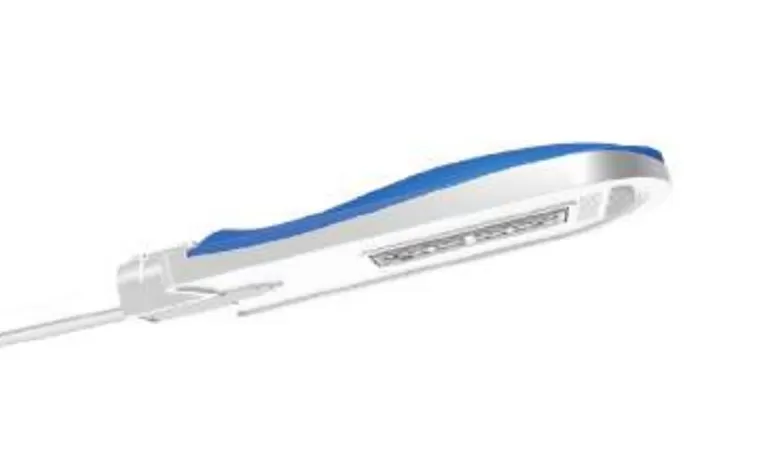

LUMO Split Solar Street Light Design

LUMO Split Solar Street Light Design

Specifications

The Following Sections Describe Product Specifications
Model No.MT-XC-001MT-XC-002MT-XC-003MT-XC-004MT-XC-005
Rated Power20W30W40W50W60W
System VoltageDC12V
Lithium Battery12.8V/42AH12.8V/66AH
Solar Panel90W/18V120W/18V
Light Source3030/5050
Light DistributionBat-Wing light distribution(150°×75°)
Light Efficiency≥170LM/W≥160LM/W≥150LM/W≥140LM/W≥140LM/W
Color Temperature3000K/4000K/5700K/6500K
CRI≥Ra70
IP RatingIP66
IK RatingIK08
Working Temperature-10℃~+60℃
Lamp Weight3.4kg
LED Lifespan>50000H
Controller10A20A
Mount Diameterφ50mm
Lamp Dimension670×250×92mm
Package Dimension685×400×270mm(4pcs/CTN)
Suggested Mount Height6m~7m7m~8m
Warranty3 Years


APPLICATION AREAS

The Following Application Areas Are Described

Diversified application fields lead the industry innovation


Our application fields are very wide, mainly covering urban lighting, road lighting, garden lighting, remote area lighting and wilderness camping lighting and other aspects. The company uses the advantages of solar energy cleanliness, safety and universality to provide energy saving, environmental protection, economic and practical solar outdoor lighting solutions.

At the same time, the company is also committed to technological innovation, constantly improving product performance and user experience, and gradually expanding solar lighting to indoor lighting, agricultural lighting, industrial lighting and other emerging fields.

By providing a full range of services, it has promoted the rapid development of the solar lighting industry.

More applications
Parks and
scenic spots
Parks and scenic spots
Rural
roads
Rural roads
Farms and
livestock farms
Farms and livestock farms
Urban streets and
sidewalks
Urban streets and sidewalks

SOME FAQ

Here Are Some Daily Questions And Answers
Solar street lamp FAQ
  • 01 What is the working principle of solar street light?

    In the solar lighting system, the solar panel charges the battery in the daytime, and the battery powers the lights at night.

  • 02 What are the similarities and differences with AC grid-connected street lights?

    No need to connect to the grid, and zero cost to use;

    No need to lay cables, easy to install, saving cost and time;

    Each solar street light is independent, which can be installed in any sunny place,automatic ON/OFF, maintenance-free;

    Solar street light is DC supply,  and the working voltage is less than 36V, which is safer;

    The initial cost of solar street lights are 30%-50% higher than the AC street lights.

  • 03 How often does the lithium battery need to be replaced?

    The battery lifetime not only depends on the quantity, but also affected by the DOD(depth of discharge). META SOLAR uses branded battery cell and manage the DOD strictly ensuring the battery life. Generally, Our LFP battery sustain 7 years more, and 5 years more with ternary lithium battery and gel battery.

  • 04 Does the solar panel need to maintenance?

    Solar panel should not be covered with heavy dust, sand or bird droppings, which will lower its generation efficiency, so it needs to be cleaned regularly. Generally, it need to be cleaned every 8-10 months in rainy area , every 3-5 months in dry and dusty area.

Solar street light system FAQ
  • 01 Do solar street lights need to be added with motion sensors?

    On the heavy traffic road and time,we don’t suggest motion sensor,on low traffic road and time,such as country road,Urban pathway,park, parking lot,etc,you can add the motion sensor to save cost.

  • 02 What type of batteries are commonly used in solar street lighting systems?

    The most popular battery is LFP(lithium iron phosphate battery), which accounts for more than 70 percent of the current solar street lighting market,Due to it’s small size,high temperature resistance, deep discharge,long lifespan,safe,environmental protection.

  • 03 Can the solar street light system use a remote control?

    Our all in one and all in two systems have a remote control,  you can adjust the working time and brightness of the light.

  • 04 Why is the Luminous efficiency of the lamp more important than the power?

    For LED lighting, brightness is measured in lumens. The higher the lumens, the brighter the light. Wattage, however, merely reflects power consumption and is not directly proportional to brightness. Meta SOLAR utilizes super bright LED chips that achieve a luminous efficiency of up to 200 lm/W, compared to the typical 130-140 lm/W of standard solar lights.

Custom service and technical support FAQ
  • 01 Do you offer product customization services?

    Yes, we offer custom service for outdoor solar street lights. According to your specific needs and scenarios, we can tailor the specifications, brightness and intelligent control of solar street lights.

  • 02 What is the delivery time for customized products?

    The delivery time for customized products depends on the specific customization content and production schedule. Generally, after receiving the customization request, we will assess it as soon as possible and provide an estimated delivery time.

  • 03 What technical support do you offer?

    We offer comprehensive technical support, including product selection consultation, installation guidance, troubleshooting, and resolution. Customers can contact us via phone, email, or online chat tools to obtain timely technical support.

Order FAQ
  • 01 How can I place an order for your products?

    You can order online through our official website, or you can contact our sales team directly for product information and help. For large purchases or customized needs, it is recommended to communicate in detail by email or phone, so that we can provide you with more accurate quotes and services.

  • 02 How long does it usually take to ship after order confirmation?

    Generally, standard products are shipped within 3-7 working days after order confirmation and payment. For customized or specially configured products, the shipping time may be slightly longer, subject to our production schedule and customer communication. We will notify you of the estimated shipping date in advance.

  • 03 What payment methods do you accept?

    We support multiple payment methods, including but not limited to bank transfers, credit card payments (through third-party payment platforms), Alipay, WeChat Pay, etc. For specific payment methods and operation guides
