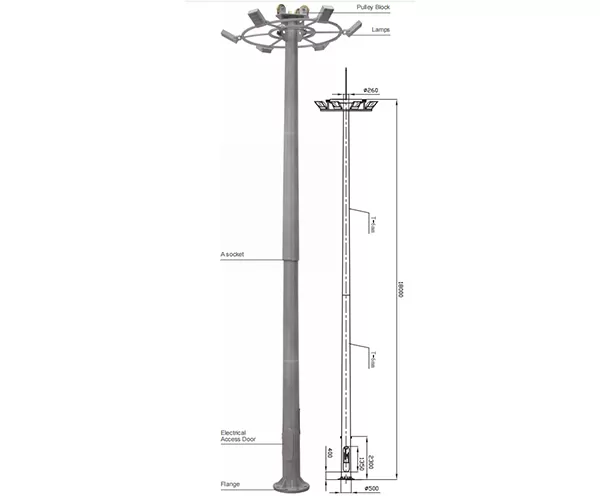

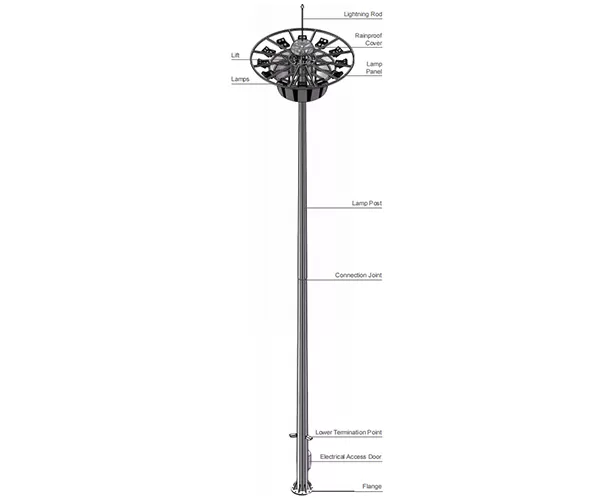

Adopting high-strength steel plate, molded and rolled, submerged arc welded, and produced by using a plug-in manufacturing process; automatically lifted and lowered for easy maintenance.
Hot dip galvanized with powder coating.

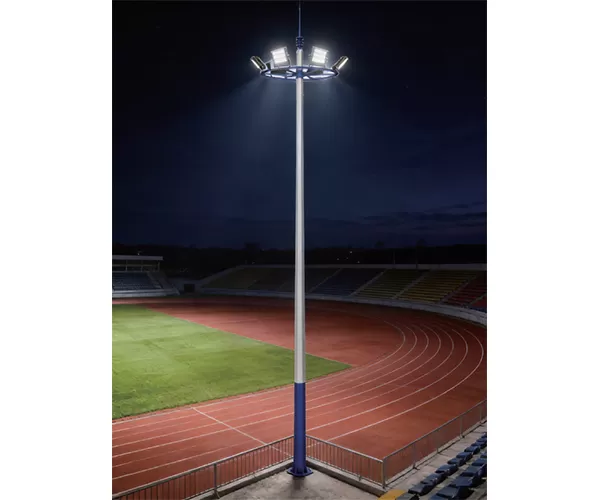

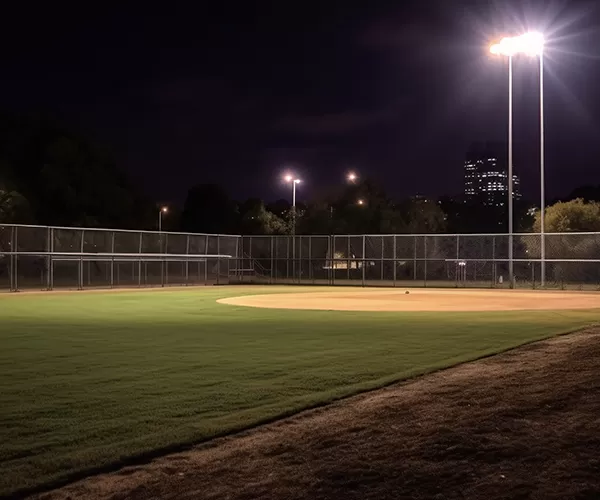

Suitable for wide scenes such as squares, docks, airports, sports fields, etc.
Heights range from 15m to 30m (including 15m, 18m, 20m, 25m, and 30m), and can be extended up to 40m.

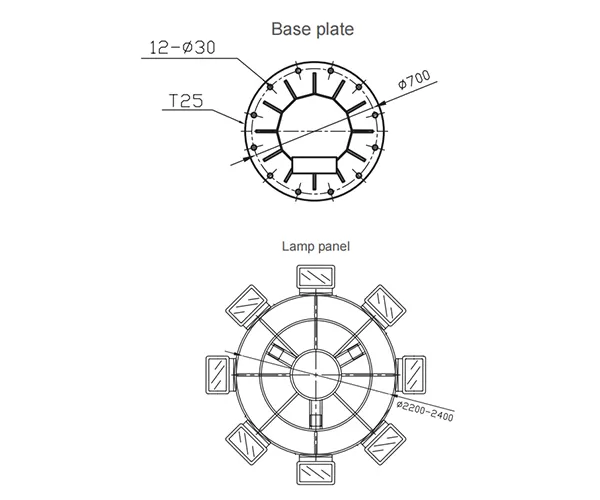

| Height(m) | Upper and lower diameters(mm) | Thickness(mm) | Flange Diameter(mm) |
| 15 | 200-380 | 6-6/6-8 | 700*700*20 |
| 20 | 220-450 | 6-6/6-8 | 750*750*20 |
| 25 | 240-550 | 6-6-8/6-8-8/6-8-10 | 900*900*25 |
| 30 | 260-560/280-640 | 6-8-8/6-8-10/6-10-12 | 1050*1050*25/30 |
| 35 | 320-680 | 8-8-10/8-10-12 | 1100*1100*30 |
| 40 | 350-720 | 8-8-10-12/8-10-10-12 | 1200*1200*40 |
| Applicable Scene | For large squares, sports, airports, high-speed service areas, city center intersections, etc. require large-area lighting. | ||

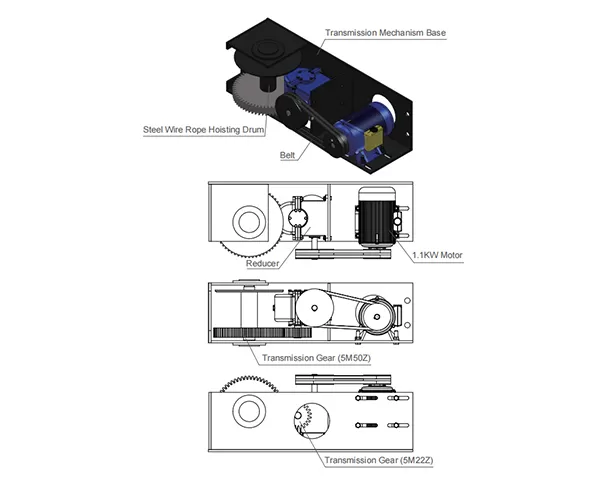

| Driving Motor System | Height(m) | Weight Capacity(kg) | Power(kw) |
| Small | 15-25 | 350 | 0.75 |
| Mid | 25-30 | 350-450 | 0.75-1 |
| Large | 30-40 | 450-700 | 1.1 |
Recommended Parameters
| Height(m) | Upper and lower diameters(mm) | Thickness(mm) | Flange Diameter(mm) |
| 15 | 180-340 | 6-6/6-8 | 700*700*20 |
| 20 | 200-400 | 6-6/6-8 | 750*750*20 |
| 25 | 240-500 | 6-6-8/6-8-8/6-8-10 | 800*800*25 |
| 30 | 260-560 | 6-6-8/6-8-8/6-8-10 | 1000*1000*25/30 |
| Applicable Scene | For large squares, sports, airports, high-speed service areas, city center intersections, etc. require large-area lighting. | ||
Recommended Parameters

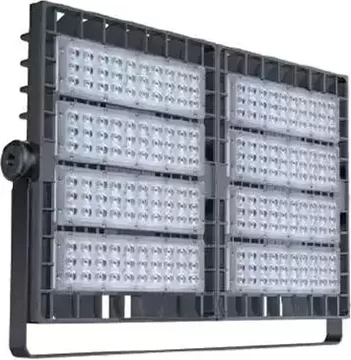

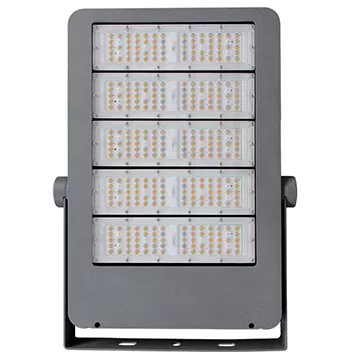

Standard module, convenient storage, efficient radiating
performance.Products are waterproof joints and silicone pad
sealing process, the protection level of IP66, suitable for a variety
of harsh outdoor environment.
120W/180W/240W/300W
Tight die-cast aluminum body has excellent heat dissipation, effectively prolonging lamp lifespan.
Metal bracket allows flexible installation, including ceiling-mounted, wall-mounted and ground-mounted options.
