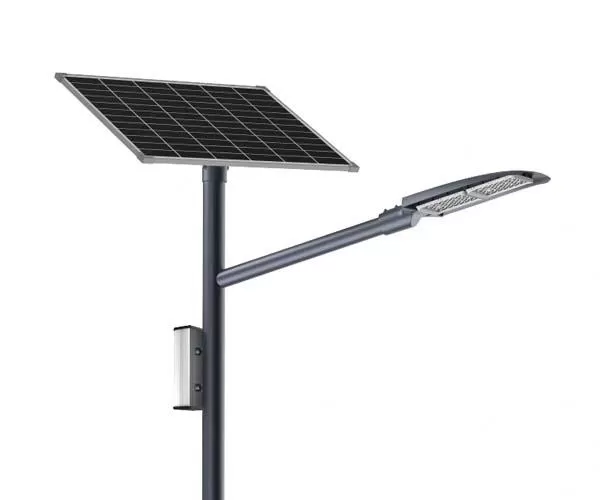

AVANDA Split Solar Street Light

Split solar street light also known as all-in-three type, adopts Split Design concept, which can effectively save energy and extend the life of the whole lamp.

Specifications

ModelMT-XY
Working voltageDC12V/24V
Battery typelithium iron phosphate(LFP)
Lighting power40-80W
Color temperature3000K/4000K/5000K/5700K
CRI≥Ra70
IP ratingIP65
Suggested installation height6-10M

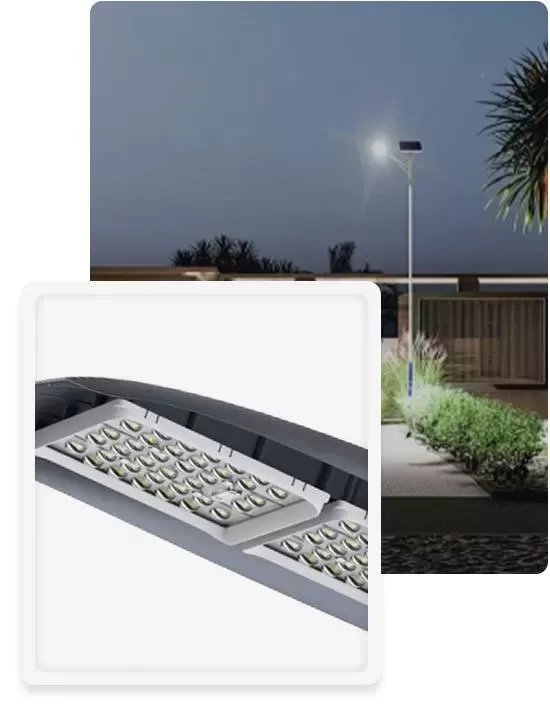

Product Design

Here Are Some Highlights Of The Product Design

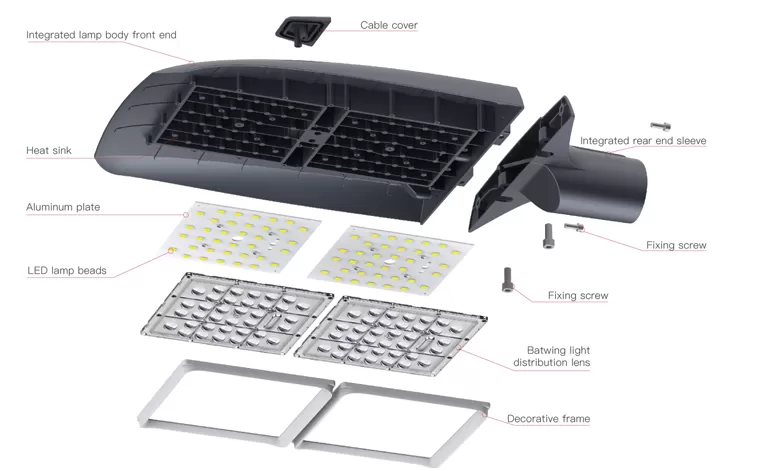

Product features and component details


The AVANDA series boasts an innovative design that combines a robust die-cast structure with modular light source architecture, facilitating easy installation and maintenance. The plug-and-pull circuit connection and unique heat dissipation system ensure optimal operating temperatures, while the electrostatic spray coating provides exceptional corrosion resistance.


The bat-wing light distribution design ensures uniform illumination, and high-quality chips minimize lumen decay. With its human-centered approach, the AVANDA series offers a lightweight, convenient, and low-maintenance solution ideal for various outdoor applications, including roads, squares, and scenic areas.

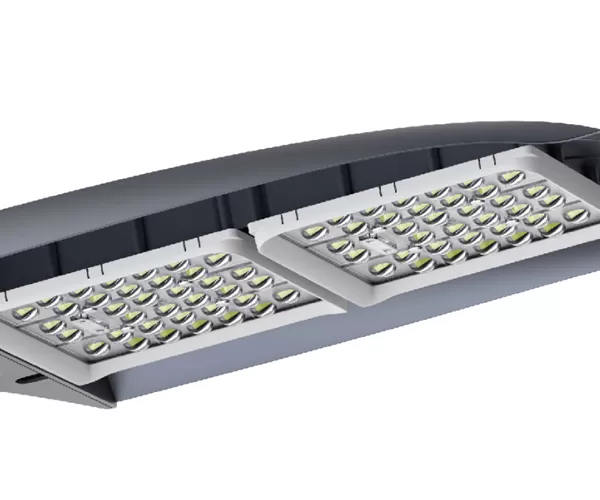

LED light source using
LED light source using

Using LED module, good heat dissipation, easy for maintenance.


Lithium battery
Lithium battery

Original branded LiFePo4(LFP battery) with cycle life 2000 and above, the life time can reach 3 years more.


Mono/poly crystalline solar panel
Mono/poly crystalline solar panel

Conversation efficiency 20% above, lifespan more than 20 years.


Lamp pole
Lamp pole

Q235 steel plate, hot dip galvanizing and powder coated surface treating, wind resisting 36.9m/s.


Product Design

Product Introduction

Product Introduction

Specifications

The Following Sections Describe Product Specifications
Model No.MT-XY-001MT-XY-002MT-XY-003
Rated Power40W60W80W
System VoltageDC12V/24VDC12V/24VDC24V
Lithium Battery12.8V/42AH12.8V/60AH25.6V/42AH
Solar Panel120W/18V180W/18V180W/36V
Light Source3030/5050/7070
Light DistributionBat-Wing light distribution (150°×65°)
Light Efficiency≥180LM/W≥180LM/W≥170LM/W
Color Temperature3000K/4000K/5000K/5700K
CRI≥Ra70
IP RatingIP65
IK RatingIK08
Working Temperature-10℃~+60℃
Working Humidity10%~90%
LED Lifespan>50000H
Controller10A15A15A
Mount Diameterφ60mm
Lamp Dimension570×330×80 mm
Lamp Weight3.4kg
Package Dimension630×390×140 mm(1pc/CTN)
Suggested Mount Height6~7m8~9m9~10m
Warranty3 Years


APPLICATION AREAS

The Following Application Areas Are Described

Diversified application fields lead the industry innovation


Our application fields are very wide, mainly covering urban lighting, road lighting, garden lighting, remote area lighting and wilderness camping lighting and other aspects. The company uses the advantages of solar energy cleanliness, safety and universality to provide energy saving, environmental protection, economic and practical solar outdoor lighting solutions.

At the same time, the company is also committed to technological innovation, constantly improving product performance and user experience, and gradually expanding solar lighting to indoor lighting, agricultural lighting, industrial lighting and other emerging fields.

By providing a full range of services, it has promoted the rapid development of the solar lighting industry.

More applications
Parks and
scenic spots
Parks and scenic spots
Rural
roads
Rural roads
Farms and
livestock farms
Farms and livestock farms
Urban streets and
sidewalks
Urban streets and sidewalks

SOME FAQ

Here Are Some Daily Questions And Answers
Solar street lamp FAQ
  • 01 What is the working principle of solar street light?

    In the solar lighting system, the solar panel charges the battery in the daytime, and the battery powers the lights at night.

  • 02 What are the similarities and differences with AC grid-connected street lights?

    No need to connect to the grid, and zero cost to use;

    No need to lay cables, easy to install, saving cost and time;

    Each solar street light is independent, which can be installed in any sunny place,automatic ON/OFF, maintenance-free;

    Solar street light is DC supply,  and the working voltage is less than 36V, which is safer;

    The initial cost of solar street lights are 30%-50% higher than the AC street lights.

  • 03 How often does the lithium battery need to be replaced?

    The battery lifetime not only depends on the quantity, but also affected by the DOD(depth of discharge). META SOLAR uses branded battery cell and manage the DOD strictly ensuring the battery life. Generally, Our LFP battery sustain 7 years more, and 5 years more with ternary lithium battery and gel battery.

  • 04 Does the solar panel need to maintenance?

    Solar panel should not be covered with heavy dust, sand or bird droppings, which will lower its generation efficiency, so it needs to be cleaned regularly. Generally, it need to be cleaned every 8-10 months in rainy area , every 3-5 months in dry and dusty area.

Solar street light system FAQ
  • 01 Do solar street lights need to be added with motion sensors?

    On the heavy traffic road and time,we don’t suggest motion sensor,on low traffic road and time,such as country road,Urban pathway,park, parking lot,etc,you can add the motion sensor to save cost.

  • 02 What type of batteries are commonly used in solar street lighting systems?

    The most popular battery is LFP(lithium iron phosphate battery), which accounts for more than 70 percent of the current solar street lighting market,Due to it’s small size,high temperature resistance, deep discharge,long lifespan,safe,environmental protection.

  • 03 Can the solar street light system use a remote control?

    Our all in one and all in two systems have a remote control,  you can adjust the working time and brightness of the light.

  • 04 Why is the Luminous efficiency of the lamp more important than the power?

    For LED lighting, brightness is measured in lumens. The higher the lumens, the brighter the light. Wattage, however, merely reflects power consumption and is not directly proportional to brightness. Meta SOLAR utilizes super bright LED chips that achieve a luminous efficiency of up to 200 lm/W, compared to the typical 130-140 lm/W of standard solar lights.

Custom service and technical support FAQ
  • 01 Do you offer product customization services?

    Yes, we offer custom service for outdoor solar street lights. According to your specific needs and scenarios, we can tailor the specifications, brightness and intelligent control of solar street lights.

  • 02 What is the delivery time for customized products?

    The delivery time for customized products depends on the specific customization content and production schedule. Generally, after receiving the customization request, we will assess it as soon as possible and provide an estimated delivery time.

  • 03 What technical support do you offer?

    We offer comprehensive technical support, including product selection consultation, installation guidance, troubleshooting, and resolution. Customers can contact us via phone, email, or online chat tools to obtain timely technical support.

Order FAQ
  • 01 How can I place an order for your products?

    You can order online through our official website, or you can contact our sales team directly for product information and help. For large purchases or customized needs, it is recommended to communicate in detail by email or phone, so that we can provide you with more accurate quotes and services.

  • 02 How long does it usually take to ship after order confirmation?

    Generally, standard products are shipped within 3-7 working days after order confirmation and payment. For customized or specially configured products, the shipping time may be slightly longer, subject to our production schedule and customer communication. We will notify you of the estimated shipping date in advance.

  • 03 What payment methods do you accept?

    We support multiple payment methods, including but not limited to bank transfers, credit card payments (through third-party payment platforms), Alipay, WeChat Pay, etc. For specific payment methods and operation guides

EVALUATION

Here Are The Customer Comments
★ ★ ★ ★ ★

Outdoor lighting street lamps are easy to install, excellent lighting effect, energy saving and environmental protection, saving a lot of electricity for the company.

Bella
Bella
Philippines
Bella
★ ★ ★ ★ ★

The all-in-one solar street light is selected, which has good lighting effect and intelligent induction, which adds extra points for the safety of the community at night.

Kodjo
Kodjo
Benin
Kodjo
★ ★ ★ ★ ★

Split solar street light split design flexible layout, strong adaptability, beautiful and practical, recommended to friends in need.

John
John
Qatar
John
